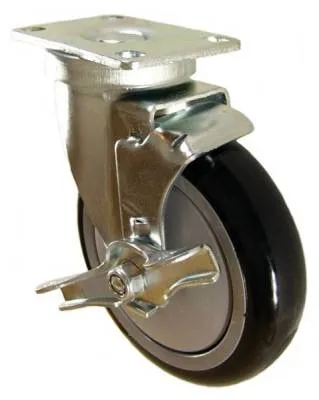

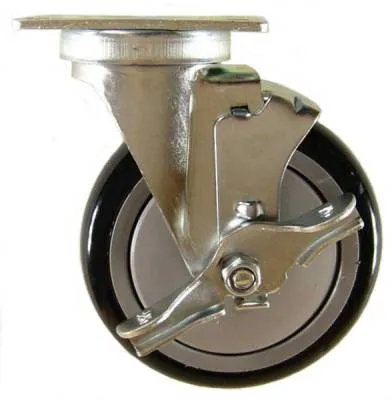

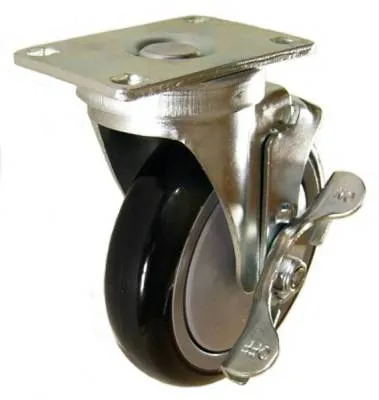

5" x 1-1/4" Polyurethane Wheel Swivel Caster with Brake- Part # Q525001PLYTLB
Polyurethane wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel, plastic, or other hard tread wheels, while still providing comparable load capacities. These wheels are great for most applications, but are not recommended for extreme hot or cold applications, when left in direct sunlight for most of their use, or if left parked in one place for long periods of time.
Specifications:
| Load Capacity (lbs.): 350 | Link to Matching Rigid Caster: |
| Wheel Diameter: 5" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Polyurethane | Swivel or Rigid Caster: Swivel with Brake |
| Wheel Bearing Type: Ball Bearings | Swivel Radius: 4" |
| Overall Height: 6-1/8" | Swivel Construction: Double Ball Raceway |
| Temp Range: -20 to 180 F |

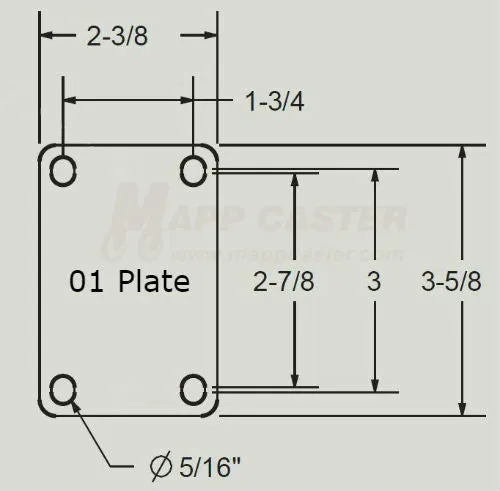

Mounting Plate: 2-3/8" x 3-5/8" |
| Wheel Durometer: 60 shore D | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Wheel Color: Dark Blue | Mounting Bolt Size: 5/16" or Smaller |
| Link to Replacement Wheel: | Weight: 2.75 Lbs |
